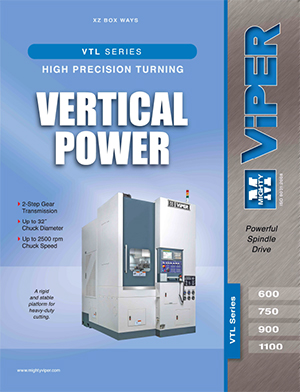

VTL 600-1100
2-Axis
VTL-600 – VTL-1100 • Vertical turning lathe provides efficient cutting coupled with high precision accuracy. Viper feed capacity provides excellent vibration absorption and chatter-free cutting.
Performance Specifications |
||||
|---|---|---|---|---|
| Machine Model | 600 | 750 | 900 | 1100 |
| Chuck Diameter | 15 | 18 | 24 | 32 |
| Turning Diameter Max. | 24 | 30 | 35 | 43 |
| Swing Max. |
28 | 35 | 39 | 51 |
| Turning Height Max. | 16 | 30 | 33 | 39 |
| X-Travel |
14 | 16 | 19 | 23 |
| Z-Travel |
16 | 39 | 33 | 39 |
| Nose Type |
A2-8 | A2-11 | A2-15 | A2-15 |
| Speed Range 2-step (hp) | 1~2500 | 1~2000 | 1~1800 | 1~850 |
| Drive Motor** (hp) | 40 | 50 | 60 | 75 |
| Tooling Station (Static) | 12 | 12 | 12 | 12 |
| Unit= inch | *Optional accessory | **30 minute rating | ||||
Available Models: 600, 750, 900, 1100
