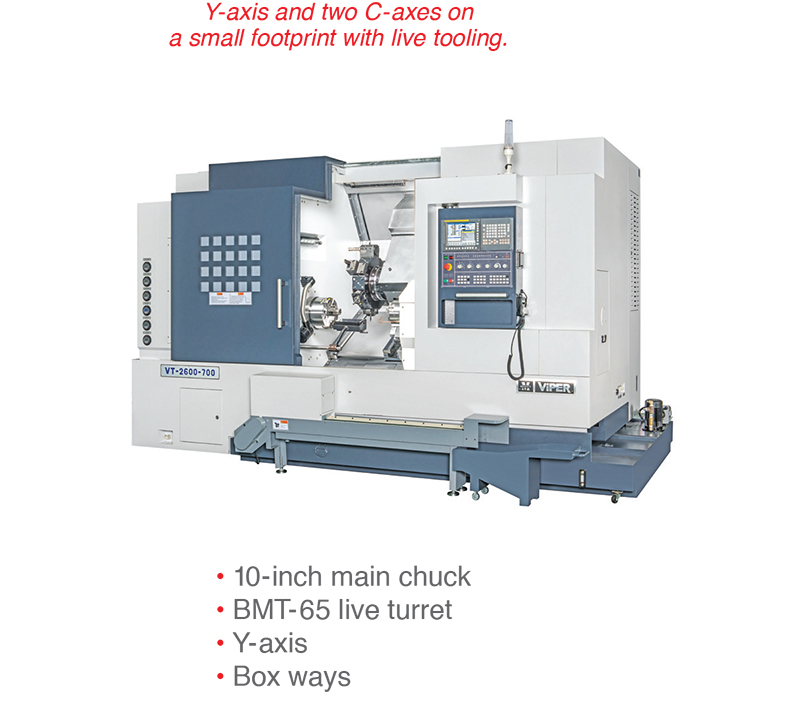

VT 2600/700YMS
3-Axis + W
2600 / 700YMS • Perform turning and milling. Turret is seated on a 30º Y-slide that moves bi-directional on a 30º X-sliding saddle offering single or two axes simultaneous movement.
Performance Specifications |
|
|---|---|
| Swing Over Bed | 33 |
| Turning Diameter Max. | 14 |
| Turning Length Max. | 28 |
| Slideway Slant Angle | 30° + 30° |
| XYZ-Travel |
7.8 × ±2.0 × 31.3 |
| W-Travel (Sub) |
28.9 |
| Nose Type |
A2-8 |
| Through Hole |
3.5 |
| Bar Capacity | 3.1 |
| Motor Main Spindle** (hp) | 30 |
| Motor Sub Spindle** (hp) | 30 |
| Unit= inch | *Optional accessory | **30 minute rating | |
Available Models: 2600/700YMS
