VT 27G-33
2-Axis

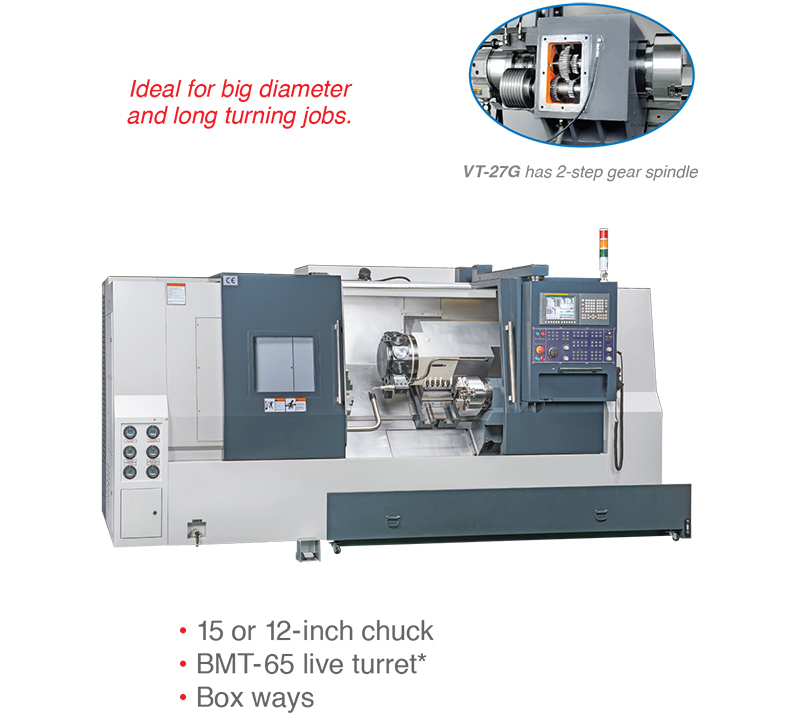

VT-27G ~ VT-33 • Performs extraordinary metal removal and provides excellent surface finishes. Live turret and a sub-spindle (optional).
Performance Specifications |
||||
|---|---|---|---|---|
| Machine Model | 27G | 28 | 30 | 33 |
| Swing Over Bed | 27 | |||
| Turning Diameter Max. | 19 | |||
| Turning Length Max. | 22~118 | |||
| X-Travel |
9.4 | |||
| Z-Travel |
23~118 | |||
| Chuck |
12 | 12 | 12 | 15 |
| Bar Capacity |
3 | 3 | 3 | 4.5 |
| Nose Type | A2-8 | A2-8 | A2-11 | A2-11 |
| Speed (rpm) |
3500 | 3500 | 3000 | 2400 |
| Motor** (hp) | 35/50* | |||
| Tool Number | 12 | |||
| Unit= inch | *Optional accessory | **30 minute rating | ||||
Available Models: 27G, 28, 30G, 33
