PRT
3-Axis

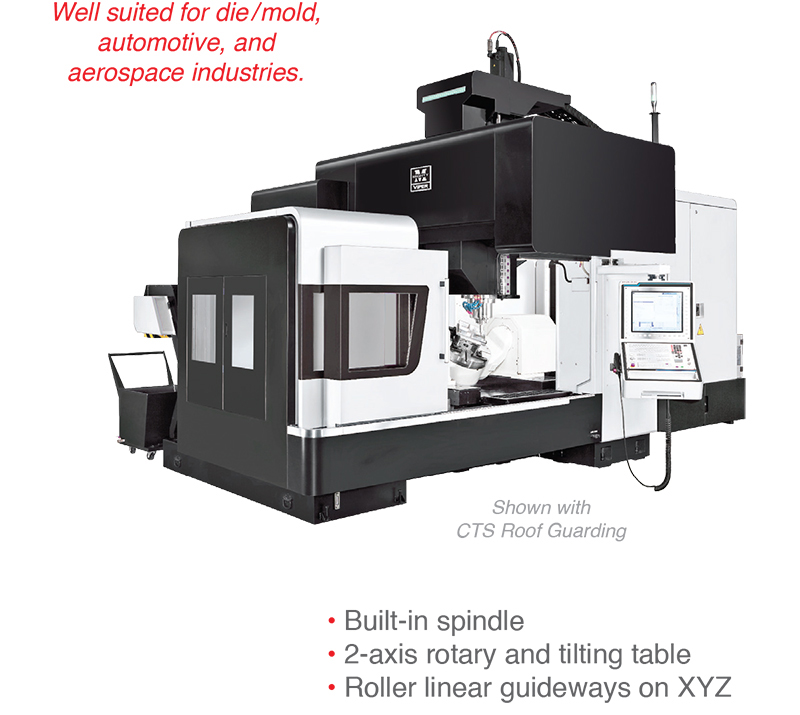

PRT • Uses 2-axis rotary table on a 3-axis bridge mill for performing 5-axis machining. Provides a large work envelope for 5-axis tilting and rotary applications. Enhance performance with Heidenhain linear scales.
Performance Specifications | |
|---|---|
| X-Travel | 24~79 |
| Y-Travel | 24 / 29 / 47 |
| Z-Travel | 14 / 20 / 24 / 32 |
| Nose Taper | HSK-E40 / HSK-A63 / BT-50 10,000 |
| Speed (Gear) rpm | 10,000 |
| Speed (DDS) rpm | 20,000 / 30,000 |
| Drive Motor** (hp) | 10 / 20 / 25 / 30 |
| CNC Control | Fanuc I Mitsubishi* |
| Unit= inch | *Optional accessory | **30 minute rating | |
Available Models: 606, 1107, 1607, 1312, 1612, 2012
