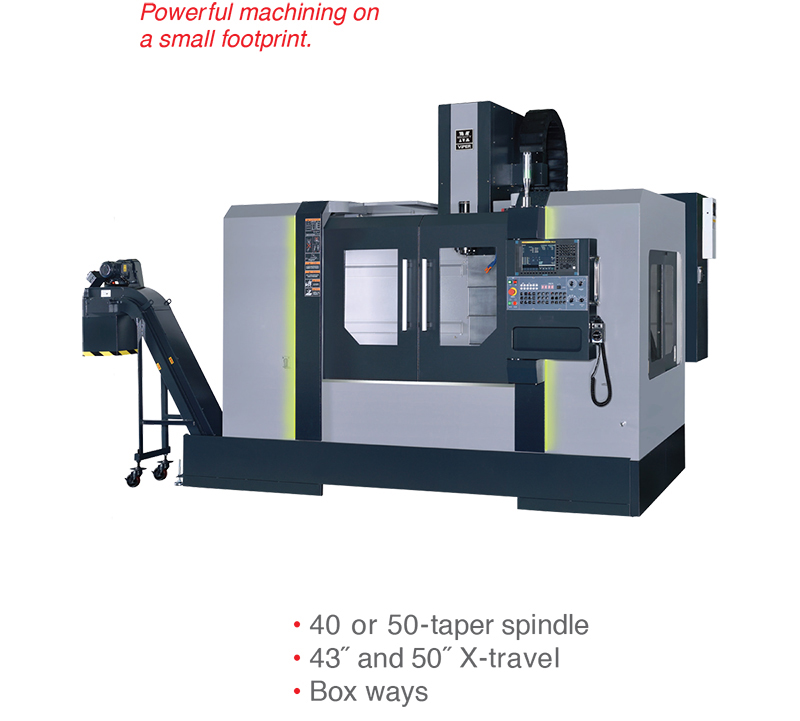

VMC 1160-1265
3-Axis
VMC-1160 and VMC-1265 • Built with a box structure body casting that yields high rigidity. Spindle configurations available in direct drive, belt and gear to meet any application needs.
Performance Specifications | ||
|---|---|---|
| Machine Model | 1160 | 1265 |
| X-Travel | 43 | 50 |
| Y-Travel | 23 | 25 |
| Z-Travel | 25 | 25 |
| Nose Taper | #40 / #50* | |
| Speed (Gear) rpm | 6000 / 8000* | |
| Speed Belt* (rpm) | 8,000 / 10,000 | |
| Speed DDS* (rpm) | 10,000 / 12,000 | |
| Drive Motor** (hp) | 15 / 20 | |
| CNC Control | Fanuc | |
| Unit= inch | *Optional accessory | **30 minute rating | ||
Available Models: 1160, 1265
