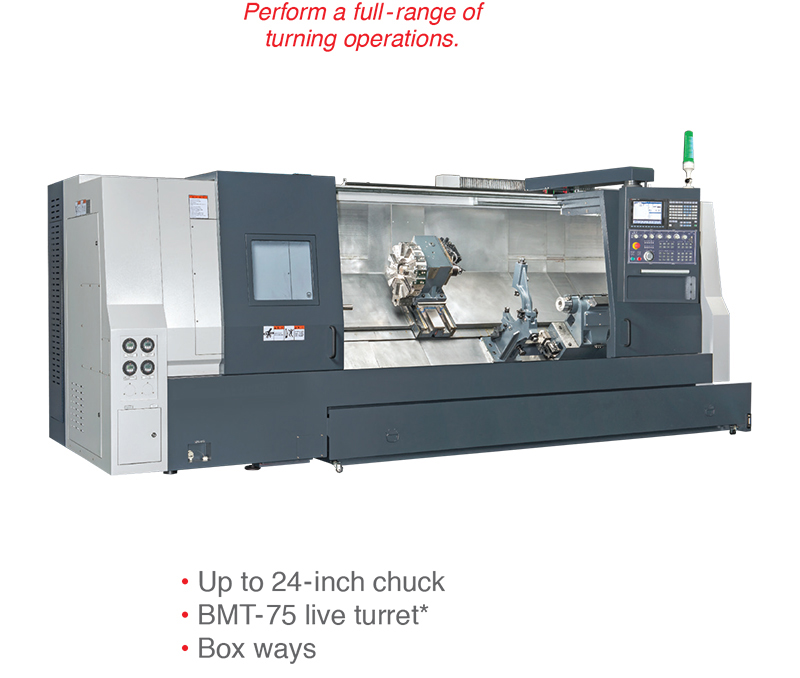

VT 36B-36CL
2-Axis
VT-36 • Turning center provides a wide boring diameter, up to 7-inches. Rigid bed structure available up to 115-inches long.
Performance Specifications |
||
|---|---|---|
| Machine Model | 36B | 36C |
| Swing Over Bed | 31.5 | 31.5 |
| Turning Diameter Max. | 24.8 | 24.8 |
| Turning Length Max. |
37~116 | |
| X-Travel |
12 | |
| Z-Travel |
37 ~ 116 | |
| Nose Type |
A2-11 | A2-15 |
| Bar Capacity |
4.5 | 6.3 |
| Through Hole | 5.15 | 7.28 |
| Speed *** (rpm) | 2000 | 1000 |
| Motor** (hp) | 50 | 50 |
| Unit= inch | *Optional accessory | **30 minute rating | ||
Available Models: 36B, 36BL, 36CL
