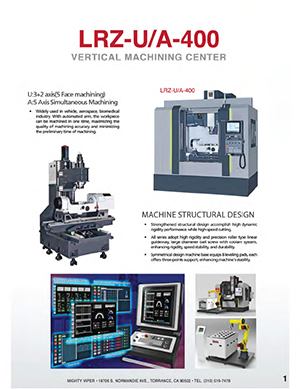

LRZ-U 400-500
3-Axis
LRZ-U • Features a rotary table that enables single setup parts machining. A/C axis rotary table offers 4+1 axis angle 5-face machining. Tilt axis and rotary axis coordinate with linear scale to ensure optimized positioning and repeatability.
Performance Specifications |
||
|---|---|---|
| Machine Model | 400 | 500 |
| X-Travel | 26 | 22 |
| Y-Travel | 24 | 25 |
| Z-Travel | 20 | 24 |
| A-Axis Tilting Range | +30° ~ -120° | |
| C-Axis Tilting Range (cont.) | 360° | |
| Nose Taper | #40 | |
| Speed DDS (rpm) | 12,000 / 15,000* | |
| Speed Built-In (rpm) | 20,000 | |
| Drive Motor** (hp) | 10/15 | |
| CNC Control | Fanuc | |
| Unit= inch | *Optional accessory | **30 minute rating | ||
Available Models: 400, 500
