VT 8-12
2-Axis

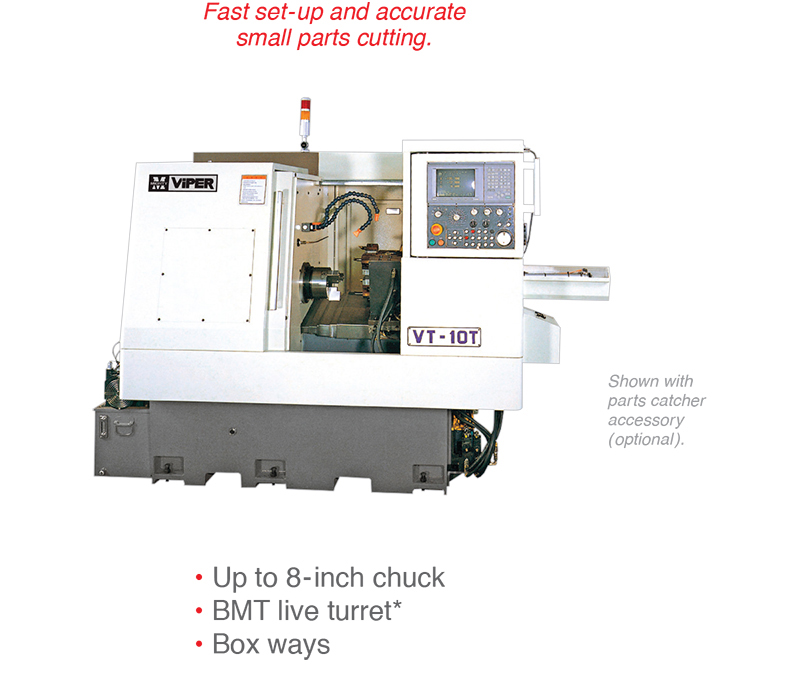

VT-8 ~ VT-12 • Performs accurate and fast turning of small parts. Choice of gang tooling, turret tooling or BMT live turret. The VT-12 turning center uses linear guideways.
Performance Specifications | |||
|---|---|---|---|
| Machine Model | 8 | 10 | 12 |
| Swing Over Bed | 12.6 | 13.78 | 15.75 |
| Turning Diameter Max. | 4.72 | 7.87 | 7.08 |
| Swing Over Cross Slide | 4.72 | 4.72 | 4.72 |
| Turning Length Max. | 3.54 | 8.26 | 5.9 |
| X-Travel | 8.26 | 9.84 | 11.8 |
| Z-Travel | 7.08 | 9.25 | 18.1 |
| Nose Type | A2-4 | A2-5 | A2-6 |
| Chuck | 5 | 6 | 8 |
| Bar Capacity | 1 | 1.65 | 2 |
| Speed Range (rpm) | 6,000 | 5,000 | 5,000 |
| Drive Motor** (hp) | 5 | 7.5 | 15 |
| Turret (Type) | gang | gang | gang |
| Unit= inch | *Optional accessory | **30 minute rating | |||
Available Models: 8, 10, 12
