VT 1500/500YMS
3-Axis + W

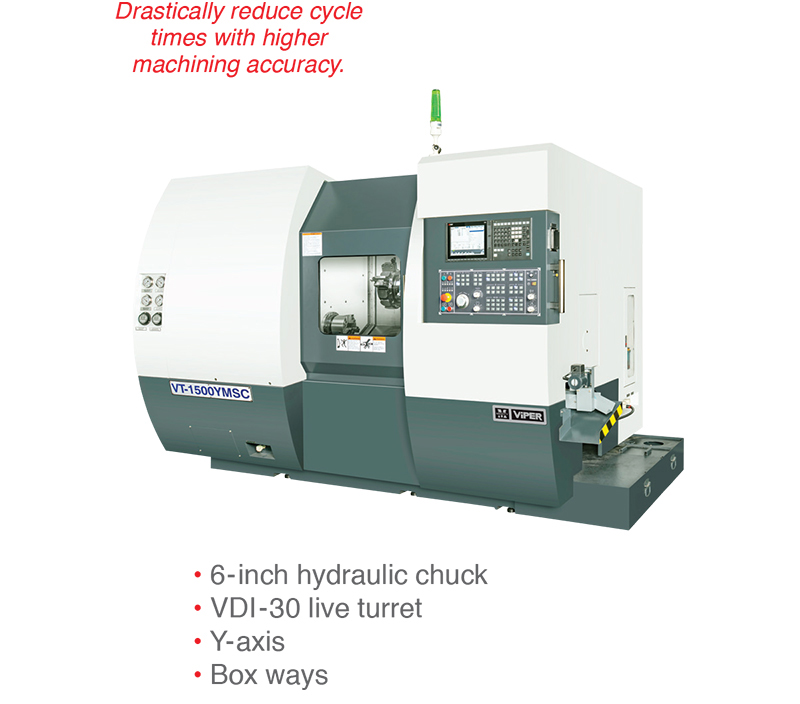

VT-1500 / 500 • Twin spindle lathe with a Y-axis. Features main and sub spindle.12-position VDI live turret. Fast rapid rates up to 1181 ipm.
Performance Specifications | |
|---|---|
| Swing Over Bed | 13.0 |
| Turning Diameter Max. | 11.8 |
| Turning Length Max. | 19.7 |
| X-Travel (Main Spindle) | 6.3 |
| Y-Travel (Main Spindle) | +1.6 / -1.2 |
| Z-Travel (Main Spindle) | 19.6 |
| W-Travel (Sub Spindle) | 19.6 |
| Nose Type | A2-5 |
| Chuck Main Spindle | 6 |
| Chuck Sub Spindle | 5 |
| Through Hole | 2.4 |
| Motor Main Spindle** (hp) | 15 |
| Motor Sub Spindle** (hp) | 10 |
| Unit= inch | *Optional accessory | **30 minute rating | |
Available Models: 1500/500YMS
