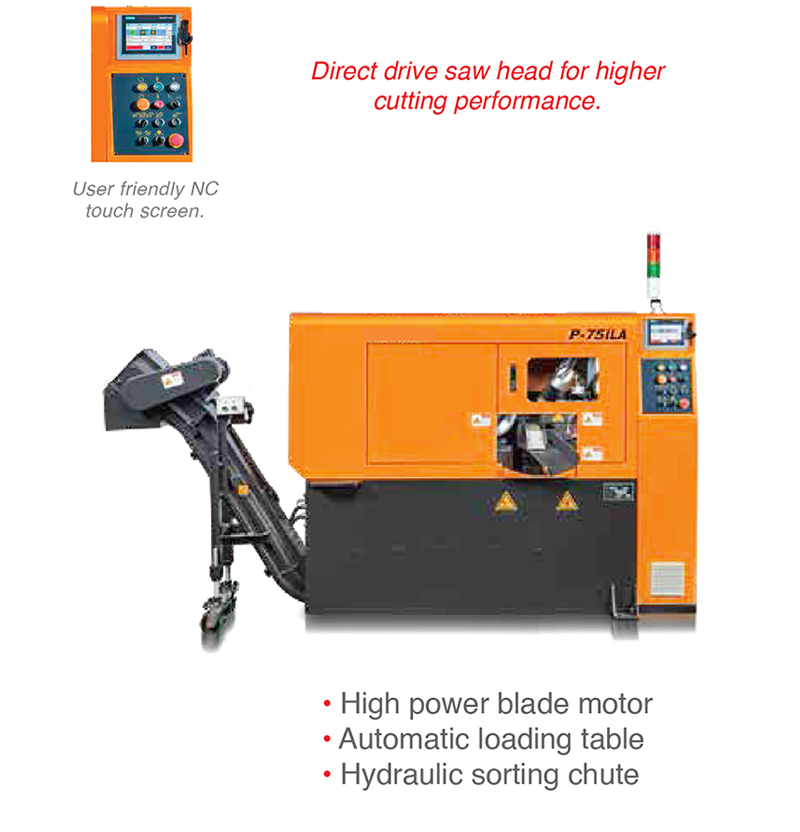

P 50ILA-75ILA
Fully automatic circular saw
P-Series • Ultra high speed billet sawing system with linear feed to the sawblade. This machine is unbeatable for performance with a cut finish that can eliminate the need for a second process. Cut yields a micro grain quality surface finish.
Performance Specifications | |
|---|---|
| Capacity ⬤ | 0.315 ~ 2.95 |
| Capacity◼️ | 0.315 ~ 2.13 |
| Blade Speed** (fpm) | 50 ~ 220 |
| Blade Size | 9.84 × 0.47 × 0.07~ 11 × 0.47 × 0.07 |
| Motor Blade Drive (hp) | 10 |
| Motor Hydraulic Pump (hp) | 2 |
| Motor Sawhead Feed Servo (hp) | 1.34 ~ 2 |
| Motor Material Feed Servo (hp) | 1.34 ~ 2 |
| Sawhead Feed System | Servo motor and ball screw |
| Automatic Feed Length | 0.236 ~ 27.56 Single Feed |
| Automatic Feed Length | 118 Multiple Feed |
| Unit= inch | |
Available Models: 50ILA, 75ILA
